• Used 2018 Homag Vantech 512 Pro “Push” 3 - Axis CNC Machining Center

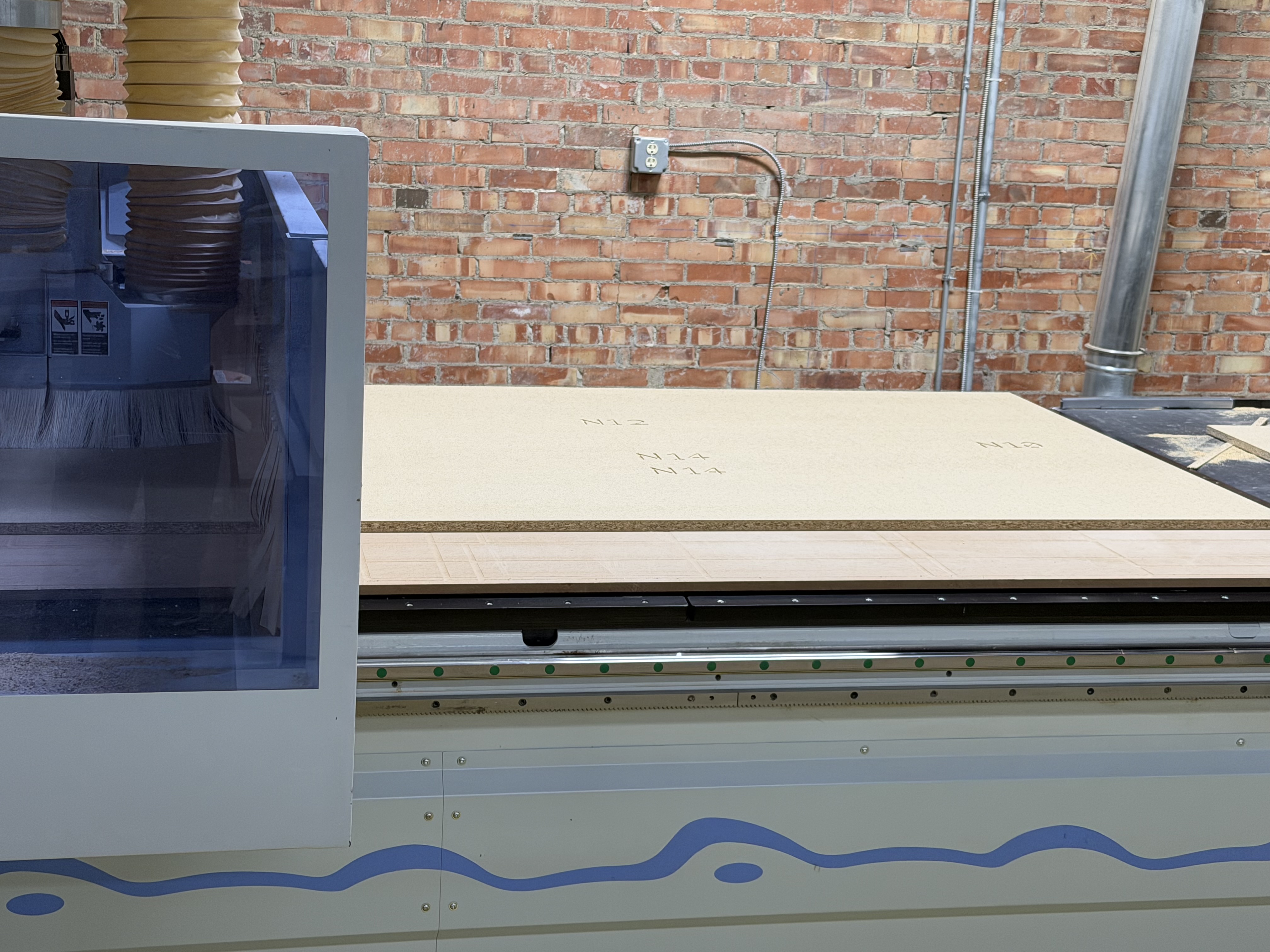

• 5’ x 12’ flat table bridge gantry with “MATRIX” grooved phenolic vacuum table

• Pneumatic reference stops, foot pedal control, vacuum gauge

• “X” Axis is 145” (3100 mm), “Y” Axis is 61” (1550 mm), “Z” Axis stroke is 9.6” (243.8 mm), max material thickness of 3.9” (99 mm)

• “X” Axis is 236 FPM, “Y” Axis is 203 FPM, “Z” Axis is 82 FPM

• The head travels via AC brushless drives & THK linear motion guides on all axes

• Main Router Spindle: 12 hp high-speed electro-spindle utilizing an HSK F63 adapter, variable speeds ranging from 1,250 - 24,000 RPM

• Drilling Block: 3.6 hp motor, seven independent vertical spindles, arrayed with 4 spindles in the X-Axis, and 3 in the Y-Axis, variable speed 1,500 - 7,500 RPM

• Tool Changer: 9-position ATC (8 position + dust cap) located at LH end

• Control System: Operated via woodWOP software interface paired with a Beckhoff programmable logic controller for multi-axis interpolation

• 13.5’ outfeed table

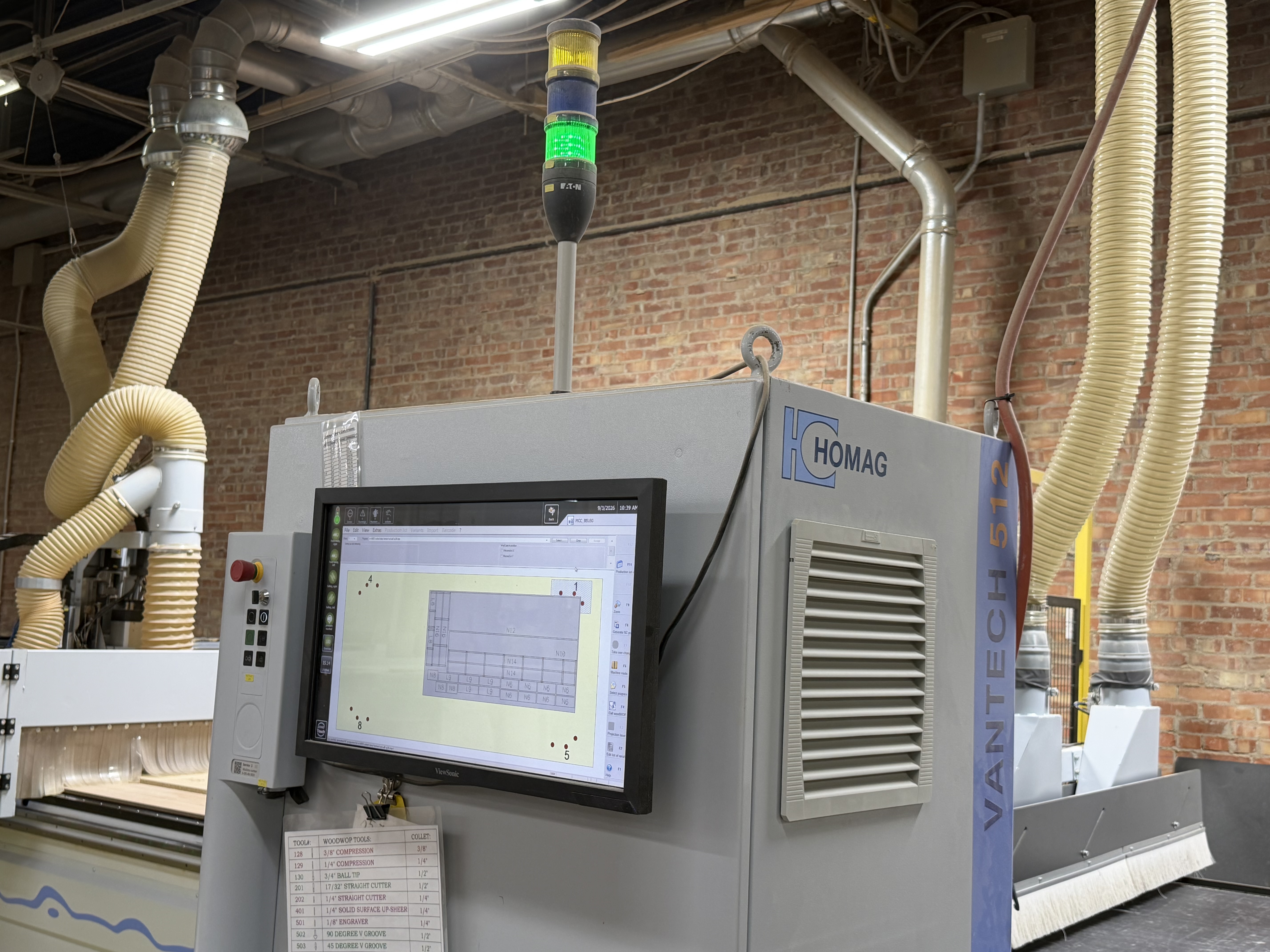

• Sound enclosure, front safety light barrier, control cabinet, 17” color monitor

• The Beckhoff logic controller for linear, circular, & helical interpolation is located in a separate free-standing, dust-free control cabinet

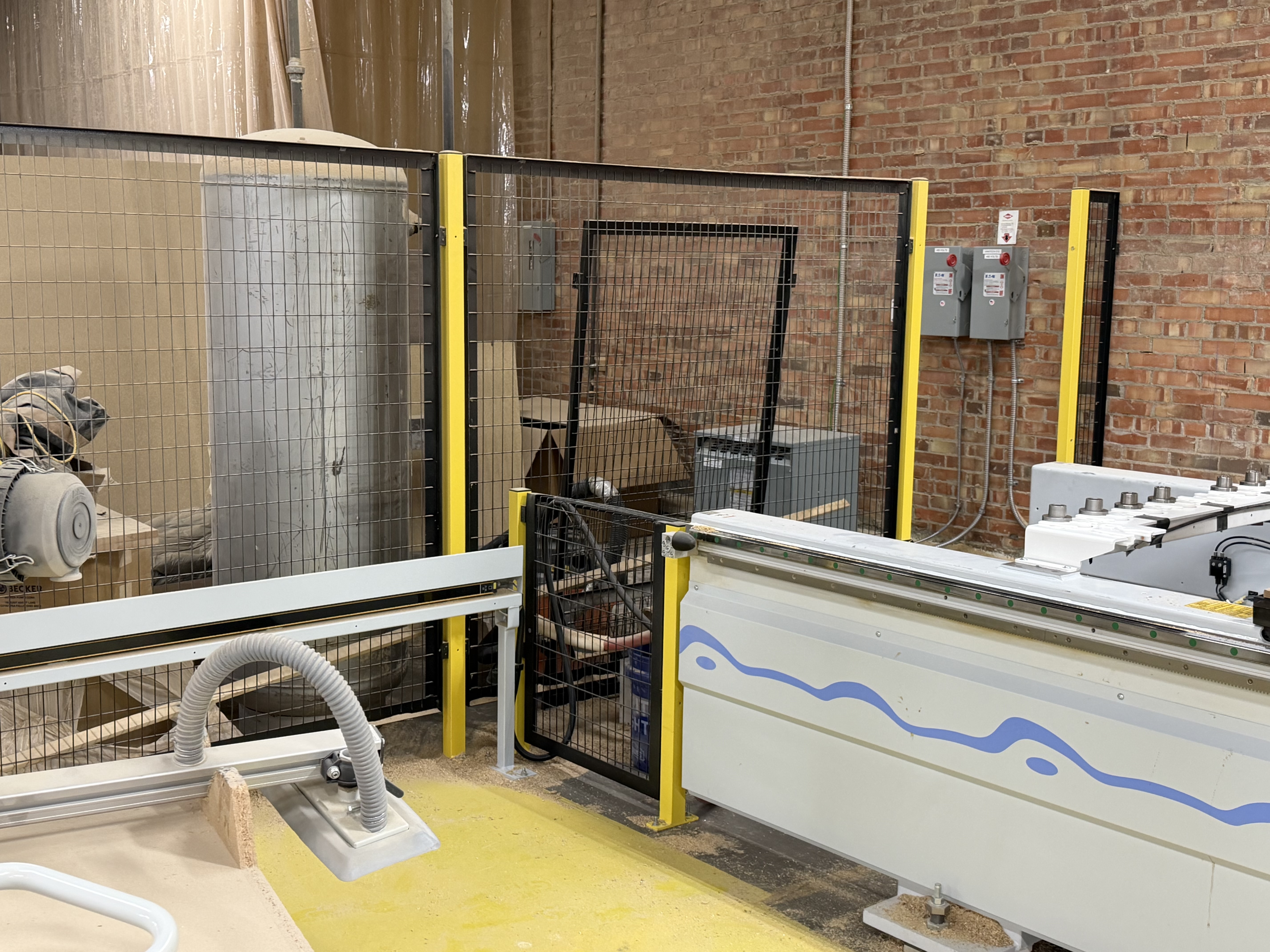

• 2 Becker vacuum pumps

• The main router spindle was replaced in 2021 as part of PM

• The drilling block was replaced in 2024 as part of PM

• One of the two Becker vacuum pumps was replaced in 2026

• **All descriptions, specifications, & features are correct to the best of our knowledge**
