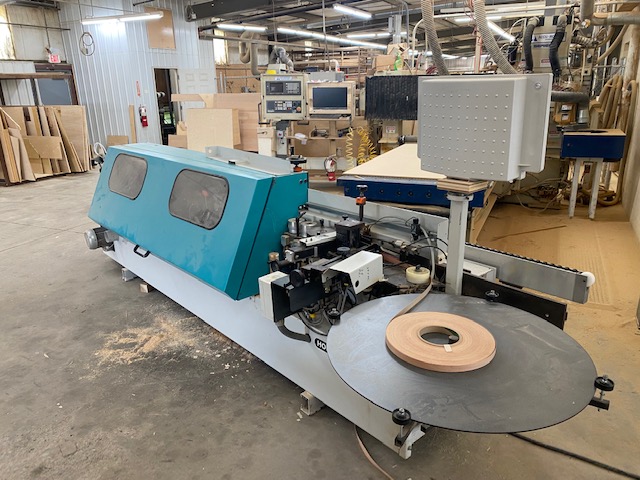

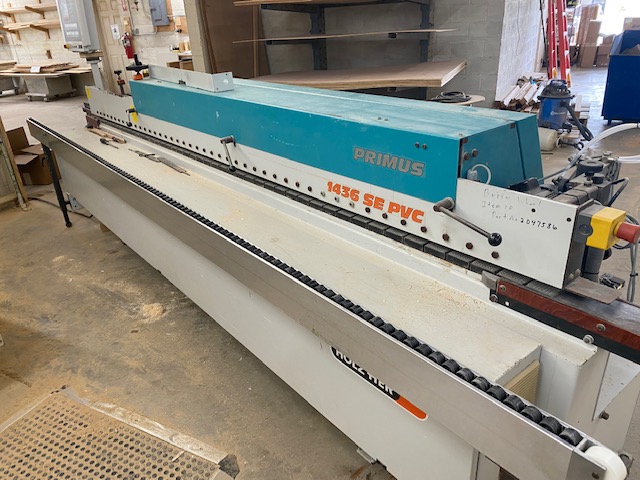

Holz-Her 1436 SE PVC Primus Edgebander W/ Corner Rounding

Price: Loaded on a truck...$7,900.00

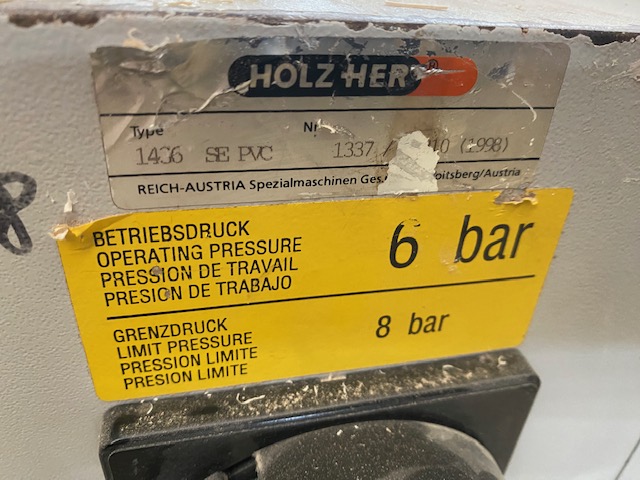

• Holz-Her 1436 SE PVC Primus Edgebander W/ Corner Rounding, 1998, 240V, 3 PH

• Cleaned, checked, good running condition

• 240V, 3 Phase

• Max 5/16” solid wood banding and 4mm PVC capacity; 1-3/4” max. panel thickness, 7” min. panel length, and 2-3/8” min width

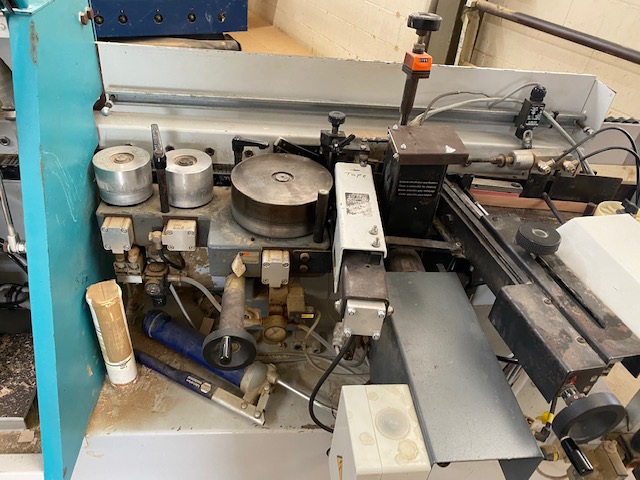

• Has cartridge glue system whopper feed & quick melt feature, automatic magazine for coil, strip and solid edgebanding

• HD guillotine for 4mm PVC glue applicator nozzle w/ height and flow control

• Pneumatically controlled pressure section with 3 rollers, powered first larger roller with electronic speed control synched with chain feed speed


• Workstations

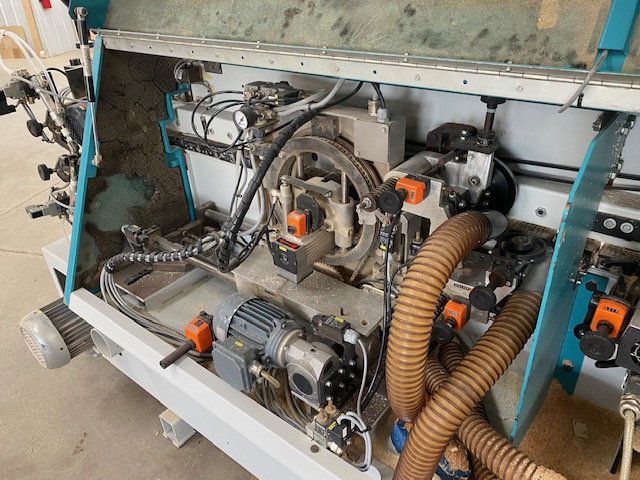

• Double motor end trim (.3 HP – 9,000 RPM) adjustable 0 degree or 10 degree for chamfer cuts electro-pneumatically from control panel

• Combination top and bottom flush, chamfer & radius trim unit (.8 HP – 18,000 RPM), SIKO digital readouts, tilts 0 to 15 degrees w/ PCS pneumatic changeover from control panel

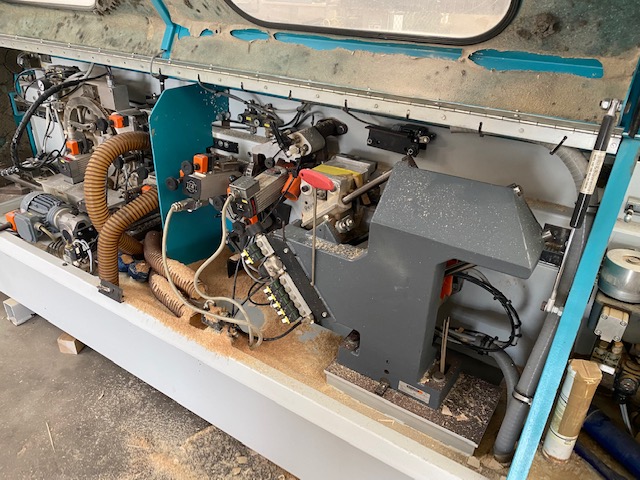

• Single station corner rounding unit for trimming leading-and-trailing upper-and-lower edge/corners; single, floating cutter jumps in, trims around top and bottom leading edge corner, then comes back up on feeding through panel trimming lower-and-upper corner of trailing edge (1 HP – 300 Cy HF motor) 2mm or 3mm radius capacity

• Top and bottom profile scrapers for up to 3mm thick PVC banding, radius range from 2-5mm, vertical & horizontal tracing shoes, SIKO readouts for easy setup, PCS system for in-and-out control from operator panel

• Top and bottom jump buffing unit (.25 HP – 1,440 RPM ea.) tilts 0 to 5 degrees

• Fixed feed speed 33 FPM, panel overhang beyond chain 35mm. Subject to change.
