Holz-Her Sprint 1416 Edgebander W/ Corner Rounding, 230V 3Ph

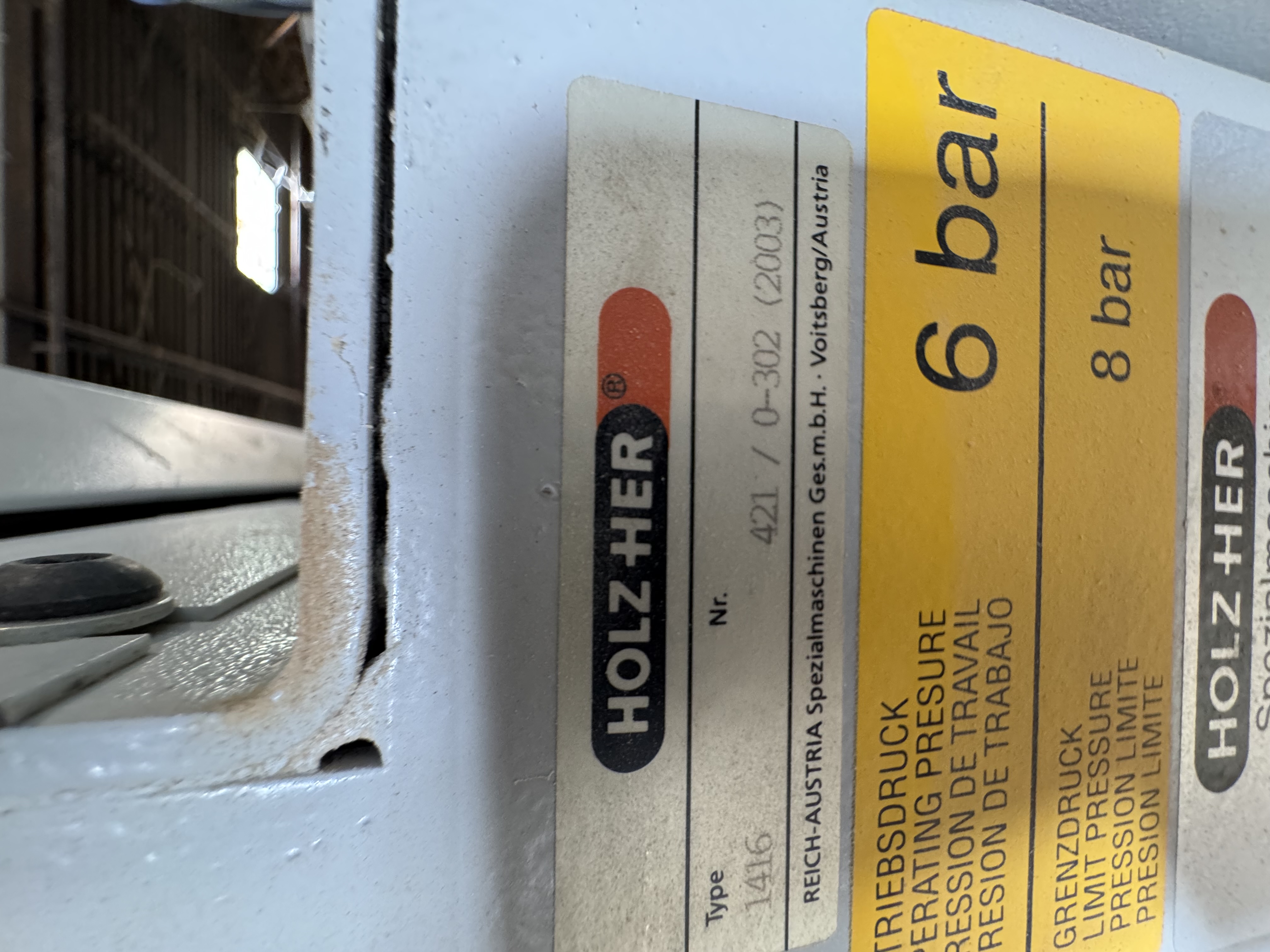

Year of Manufacture: 2003

3mm Tooling

Price: FOB Shipping Point…$4,900 OBO

Cleaned, Checked, Good Running Condition

Pulled From Service, Replaced By New Machine, Sold As Is

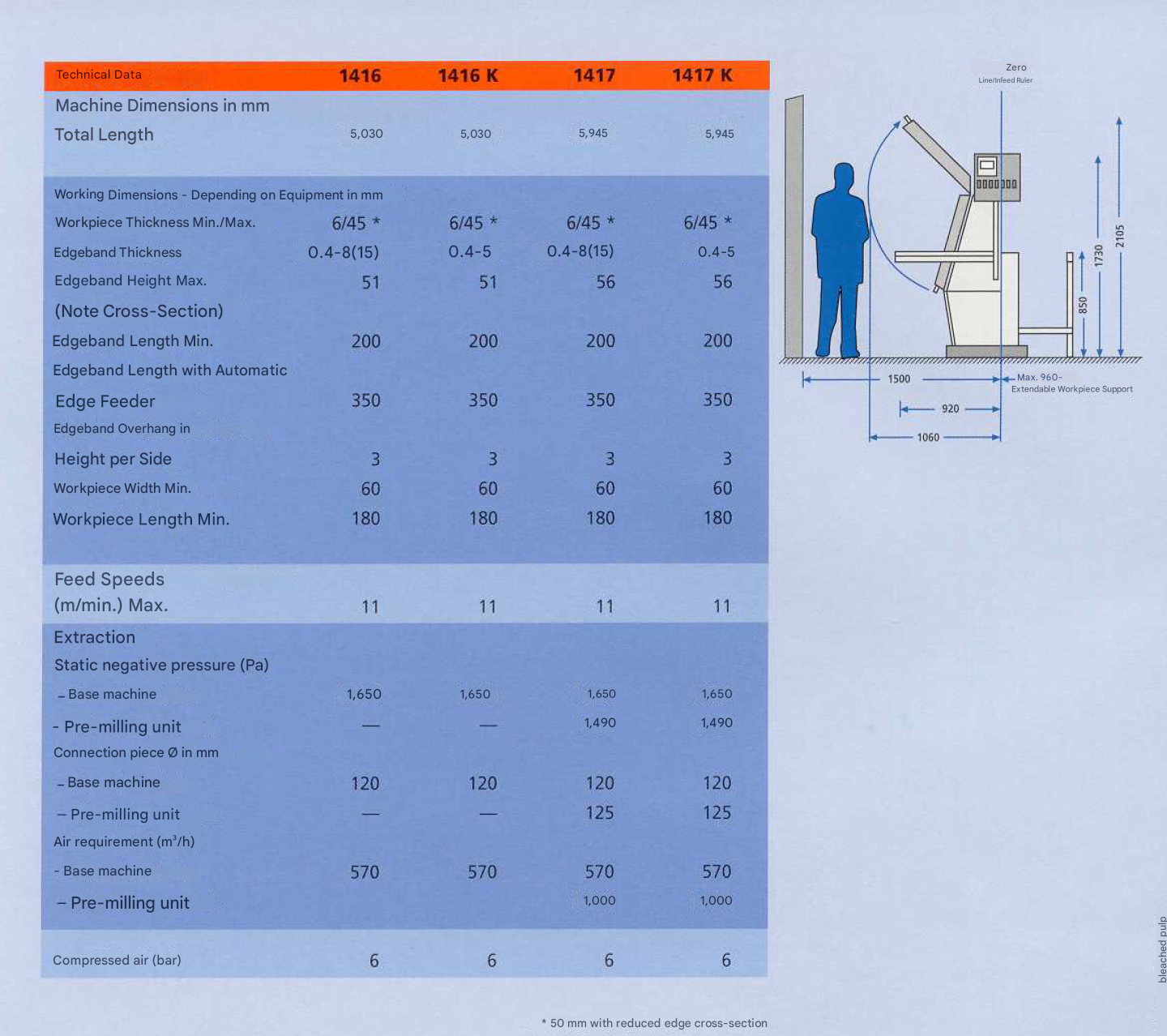

Edge Strip Thickness: 0.3 - 13mm

Edge Strip Width: 50mm

Edge Strip Length: 200mm minimum - Unlimited

Workpiece Width: Min. 60mm

Workpiece Length: Min. 180mm

Workpiece Thickness: 6 - 45mm

Feed Speed: 12 m/min

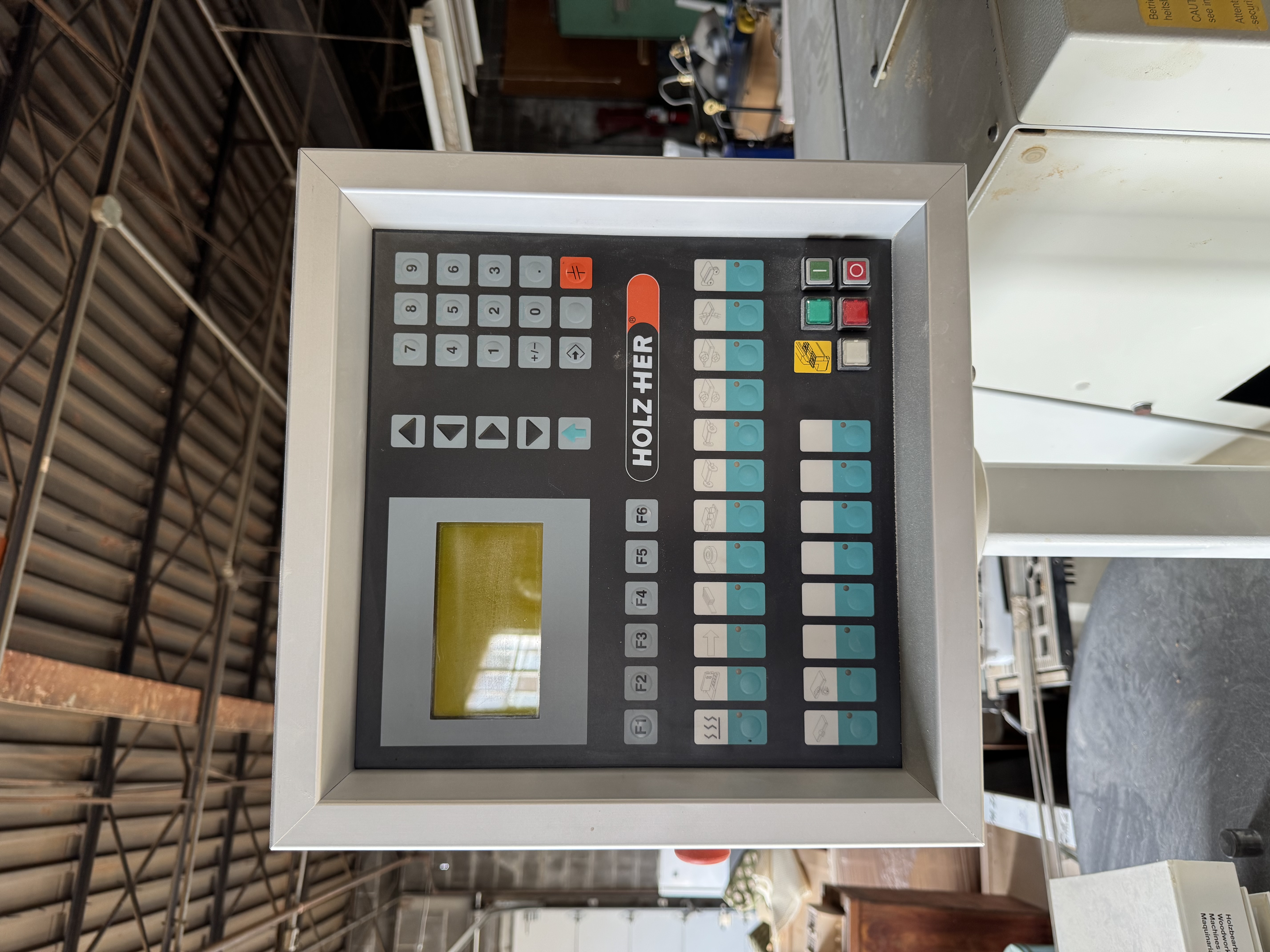

PROGRAMMABLE LOGIC CONTROL (PLC)

• Ability to program all edgebander functions including: edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, and buffing.

• Programs can be easily created and recalled at will.

• Screen with graphic interface makes programming easy.

• A picture of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed.

• Virtually eliminates set-up time by merely selecting and loading a program, which automatically activates all required edgebander functions simultaneously.

• Each program clearly indicates on screen the units included and their exact settings.

• Programs can be modified easily to create new programs.

• Edgebander can be operated manually when required, without necessity to write a program.

• Eliminates use of limit switches and their normal adjustments related to work station activation along the feed track.

• Error messages are presented in plain text, to avoid the need for endless error code lists.

• Eliminates many mistakes caused by lack of operator skill.

MODEL 1906 GLUING STATION - “CARTRIDGE SYSTEM”

• Equipped with HOLZ-HER'S exclusive patented "CARTRIDGE" glue system. This is a CLOSED APPLICATION SYSTEM in which the glue is enclosed in an air- tight chamber and cannot oxidize, discolor, burn, or become contaminated with wood dust. This allows for optimum glue adhesion.

• Glue applied to panel by patented GLUE NOZZLE from 6-45mm workpiece thickness.

• Precise control of all functions including begin and end of glue line, height of glue line, bottom of glue line, volume of glue and face melt temperature.

• Less maintenance - no glue pot to clean, fewer parts.

• Efficient glue consumption - virtually no waste.

• Efficient power consumption - uses less than half that of conventional glue pots.

• Fastest & easiest glue color change, 5-10 min.

• Fastest heat-up time in the industry, less than 3 min.

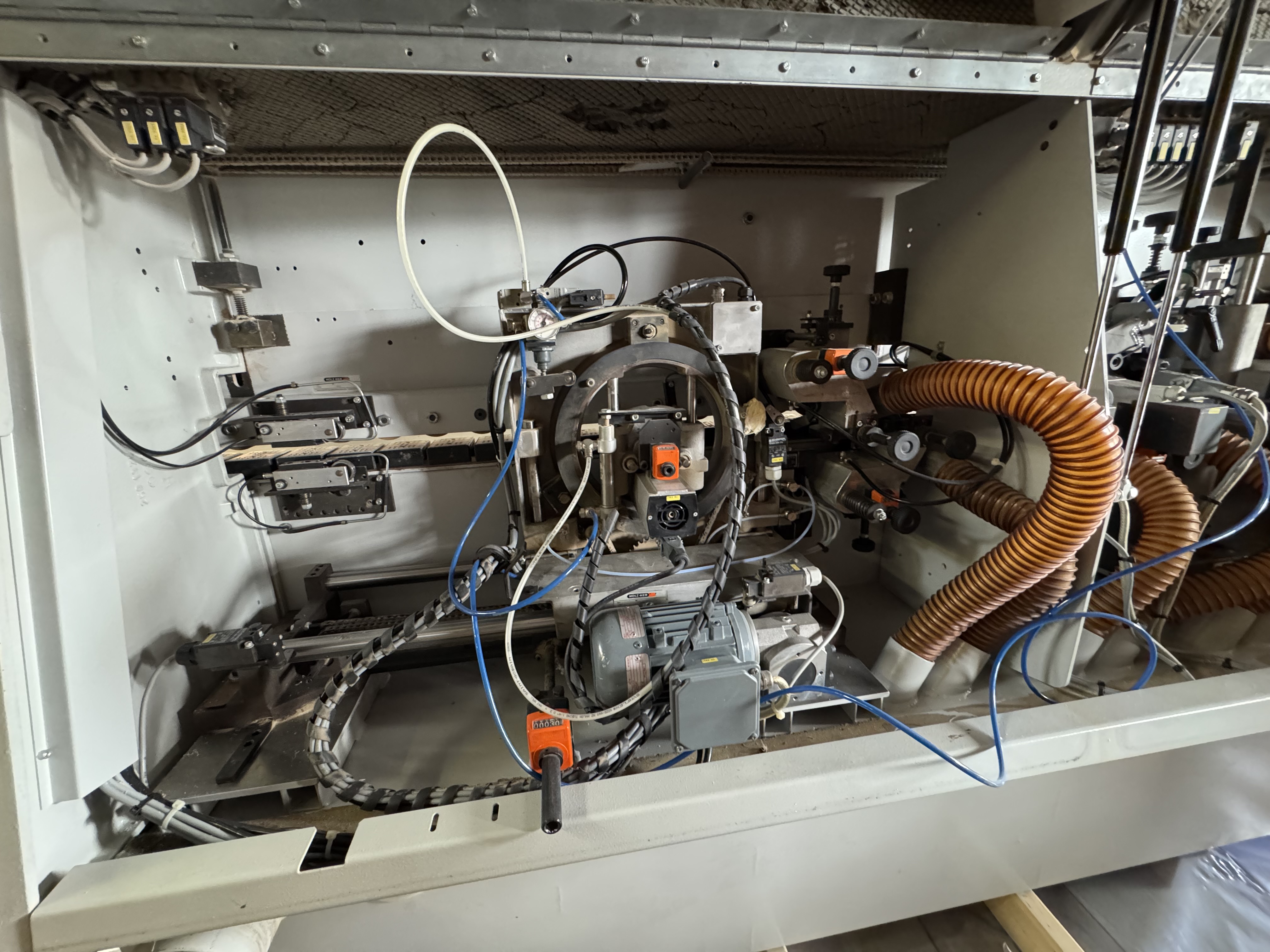

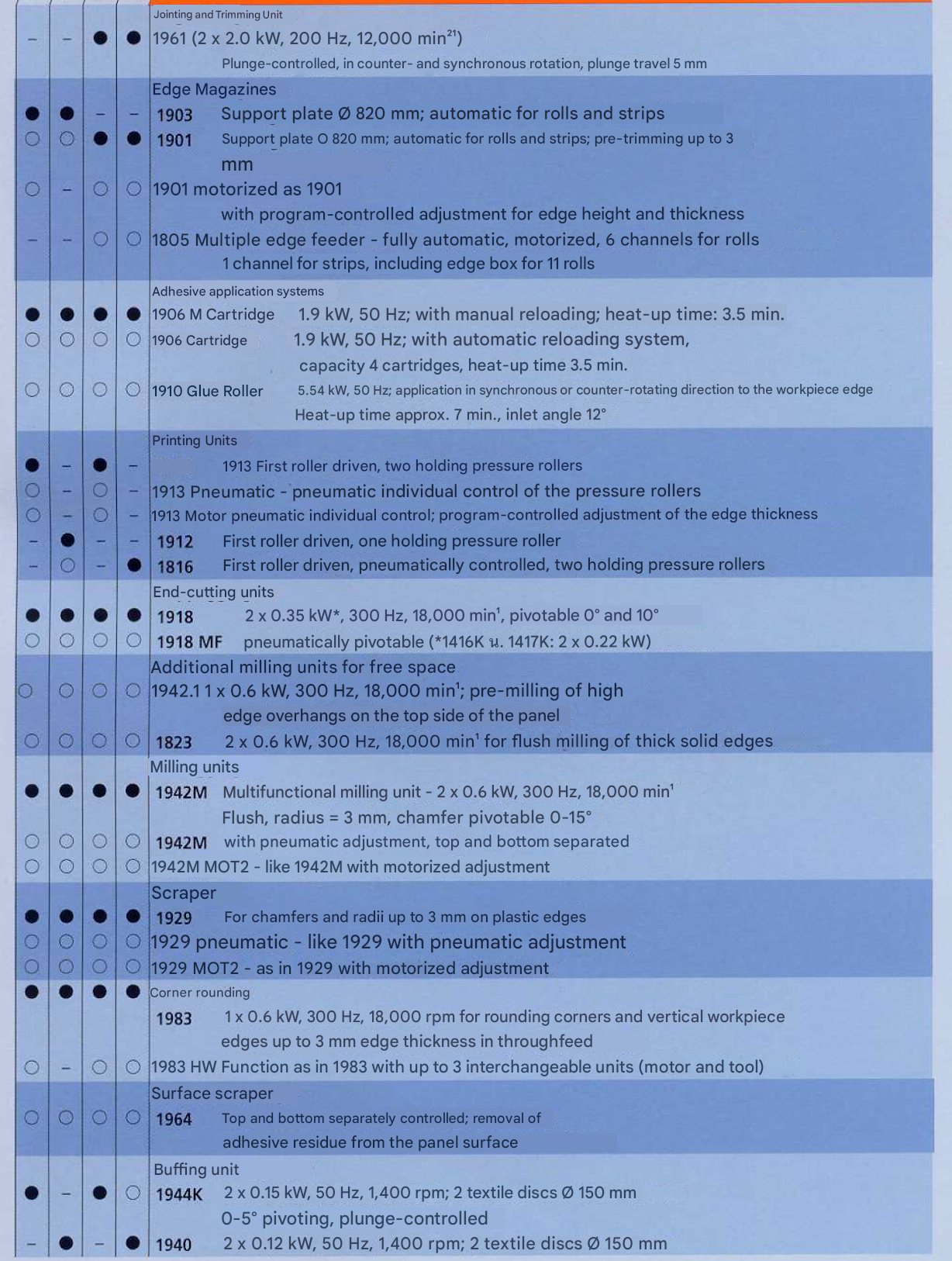

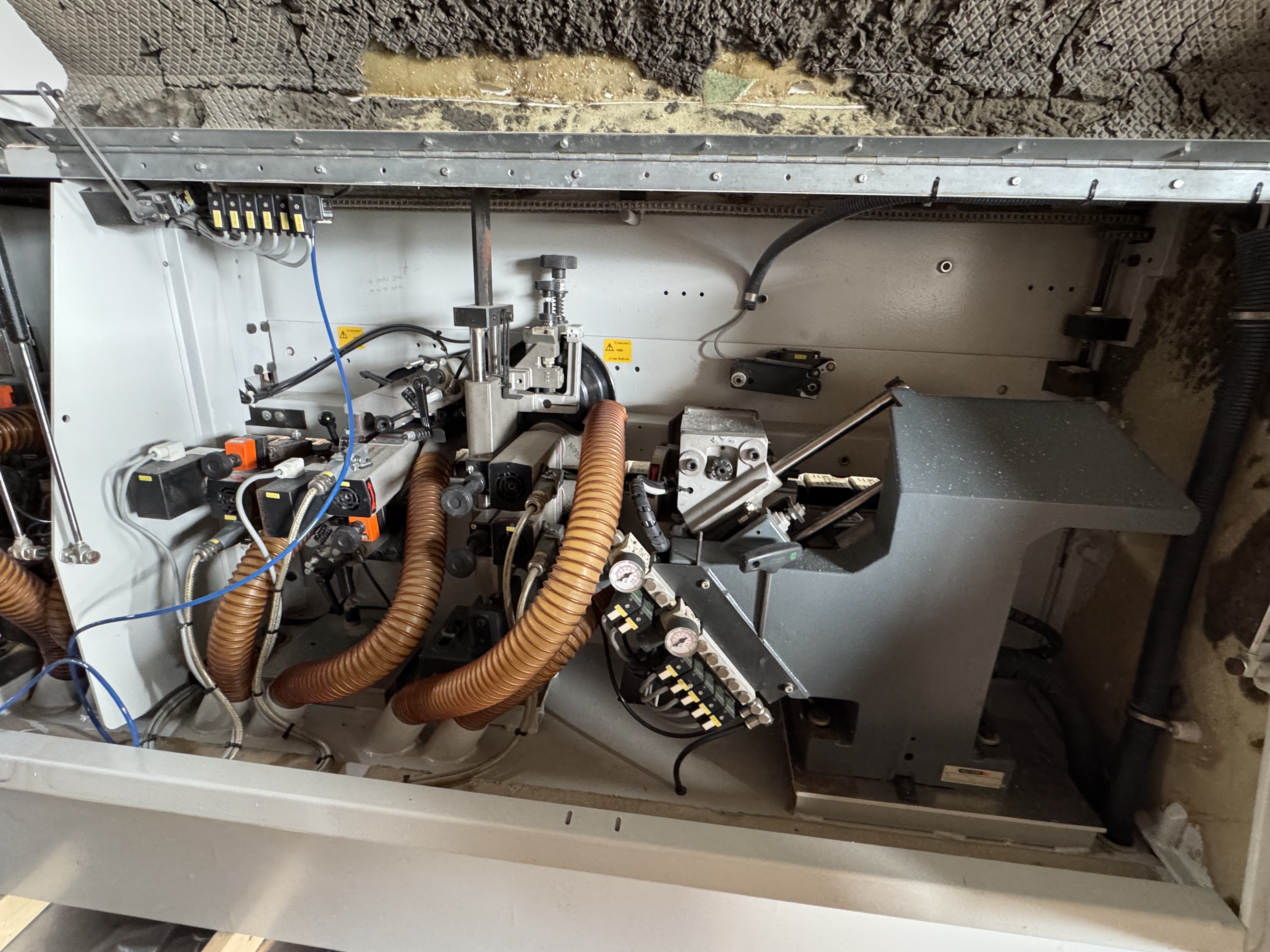

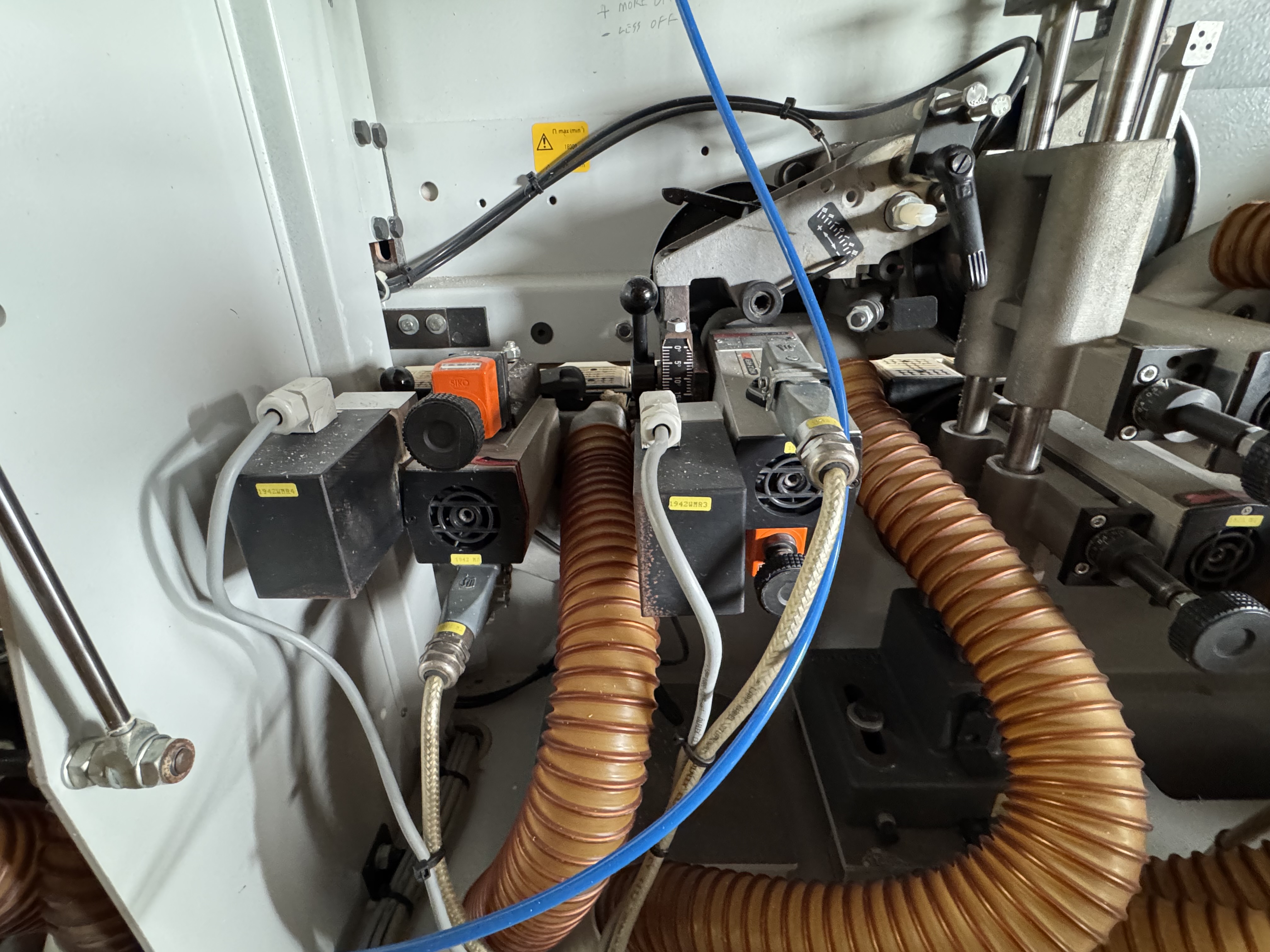

Workstations Approx:

Double Motor End Trim Station

Top & Bottom Hogging Trim

Top & Bottom Bevel Trim

Top & Bottom Scraping Unit

Single Motor Corner Rounding Unit

Top & Bottom Finish Scraper

Oscillating Buffing

Other Information

• Angled strip gate to prevent double feeding of strips.

• Magazine table on rollers for smooth feeding of coiled material.

• Edge guide equipped with automatic guillotine lock-out for safety.

• “3 DEGREE APPROACH ANGLE” allows easy feeding of large wood edges.

• Automatic guillotine for coiled material up to 4.0 mm.

*Customer states premill station may need replacement hoses.
